Duplex- * (2.8)-0.16
ÒÓ Ó 27.3-00214534-113:2019

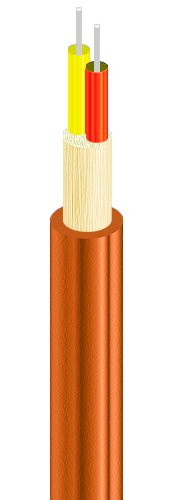

Fiber optic indoor cables with flame-retardant and halogen-free polymer compound outer sheath
Mark formation:
Duplex-[c](2.8)-0.16
[c] type of optical fiber
• A – single-mode with extended wavelength band (ITU-T G.652D, ITU-T G.657A1)
• D - single-mode, not sensitive to losses on macro-bending (ITU-T G.657A2)
Order placing: sample of indication
Duplex-A(2.8)-0.16
Fully dielectric, resistant to electromagnetic interferences, flexible and easy-to-install cables. Can be installed in the proximity of electric wiring. Can be used together with any kind of connectors. The sheath is made of flame retardant materials
Cables are used for:
• for analog and digital signal transmission by whole optic local networks bandwidth
• for installation on in closed spaces
• for optoelectronic devices connecting
• for patch-cords and pigtails manufacturing
• in areas with exclusive fire safety requirements
Fire safety code in accordance with ÄÑÒÓ 4809:2007: ÏÁ103122000
Products of this mark meet the requirements:
• single wire cable flame retardance
• toxicity class Tk3 of the combustion products of nonmetallic elements (toxicity index over 120 g/m3)
• class ÄÒê1 on smoke-forming ability by smouldering of non-metallic elements (coefficient of smoke formation from 50 to 500 m2/kg)
• class ÄÏê2 on smoke-forming ability by combustion (minimum luminous flux more than 60 %)
• corrosive class Êê2 of combustion products of non-metallic elements (the number of halogen hydrides less than 150 mg/g, pH more than 4.3, specific conductivity less than 10 µS/mm)
