ÎÀðÏ * 6 – 6
ÒÓ Ó 31.3-00214534-036-2004 |

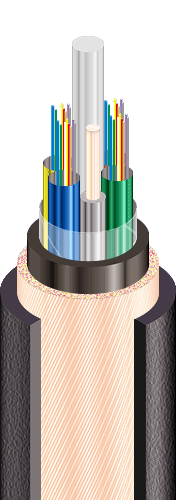

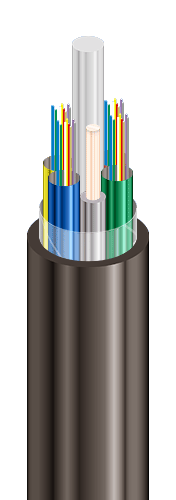

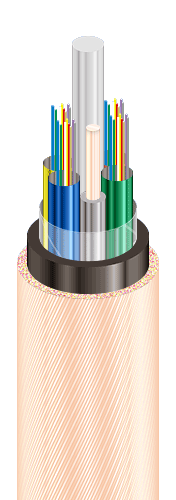

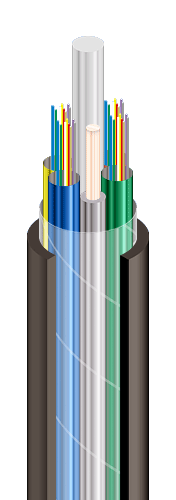

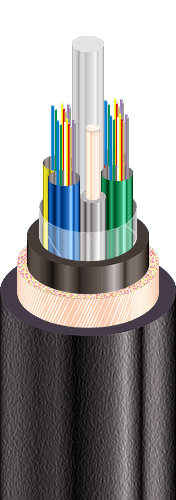

| Fiber optic module-core cables, aramid-yarn armoured, with polyethylene outer sheath |
| Mark formation: |
| ÎÀðÏ-[a]-[b] [c]6([d]x[e]+[f])-6 |

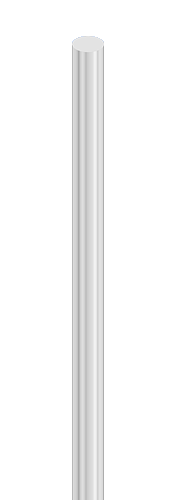

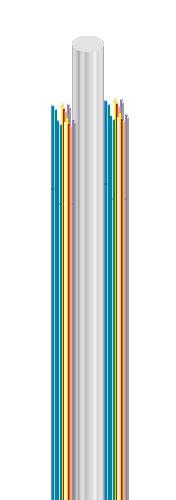

| [a] central strength element |
| • C – steel |
| • No marks – dielectric |
| [b] quantity of optical fibers in the cable, possible values |
| • 4, 6, 8, 10, 12, 16, 18, 20, 22, 24, 28, 30, 32, 36, 40, 48, 60, 72, 78, 84, 90, 96 |
| [c] type of optical fiber |
| • E – single-mode (ITU-T G.652B) |
| • A – single-mode with extended wavelength band (ITU-T G.652D, ITU-T G.657A1) |
| • C – single-mode with non-zero shifted dispersion (ITU-T G.655) |
| • M – multimode with core and sheath diameter ratio 50 : 125 mm (ITU-T G.651) |
| • B – multimode with core and sheath diameter ratio 62.5 : 125 mm (IEC 60793-2) |
| [d] 1 ... 6 – number of optical modules in cable |
| [e] quantity of optical fibers in the module: |
| • 1 ... 16 |
| (f) quantity of insulated copper conductors in cable |

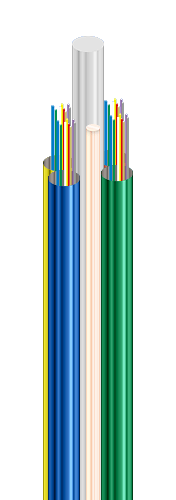

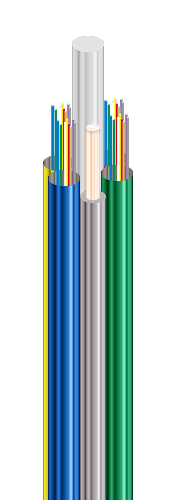

| Optical modules are completed with string fillers up to total number of core elements |
|
|
|
| Manufacturing of cables with two copper insulated remote power conductors instead of two string fillers is possible |
| Manufacturing of cables in climate version F is possible |
| It is possible to manufacture cables with gel-filled core or dry core (with water-blocking yarns and tapes) |
| It is possible to manufacture cables with a number of core elements up to and including 18 |
|
|
|
| Order placing: sample of indication (corresponds to configuration pattern) |
| ÎÀðÏ-32A6(4x8+2)-6 • ÒÓ Ó 31.3-00214534-036-2004 |
|
|
|
| Cables are used for: |
| • suspensions between buildings and facilities, at power substantions, at contact-line supports, at communication and lightning, power transmission lines supports |
