ÊÓÃÂÝÂíãä 7x0.35
ÒÓ Ó 27.3-00214534-084:2016 |

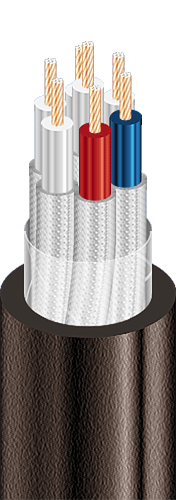

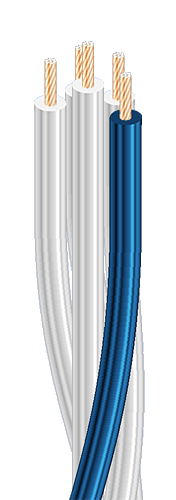

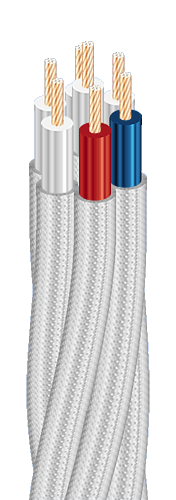

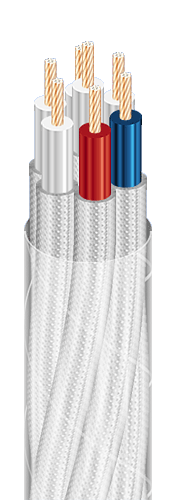

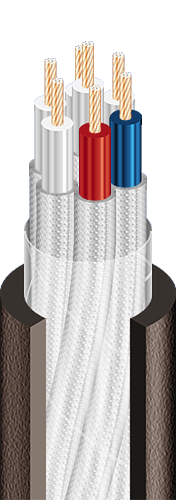

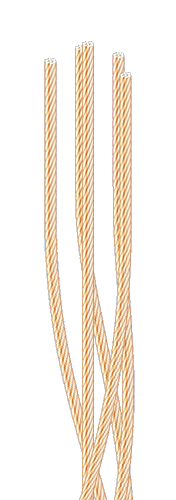

| Control cables with copper conductors, with insulation and sheath made of low risk-of-fire PVC composition, with screened cores |
| For the cable of this mark correspond the foreign-made analogues: |
| ÊÓÃÂÝÂíã-LS (RU) |
| Used: |
| • for fixed installation of the control circuits operating at voltages up to 380 V AC 50 Hz or 500 V DC |
| • for multi-cable installation (acc. GOST 31565:2012) in cable channels and premises of internal electrical installations, including nuclear power stations (NPS) outside the under containment zone |
| • for use in systems having security class 3 (B), 3 (C) and 4 according to the classification of ÍÏ 306.2.141-2008 and ÍÏ 306.2.202-2015 |
|
|
|
| Fire safety code in accordance with ÄÑÒÓ 4809:2007: ÏÁ123121000 |
| Products of this mark meet the requirements: |
| • single wire cable flame retardance |
| • bunched cable flame retardance category A |
| • toxicity class Tk3 of the combustion products of nonmetallic elements (toxicity index over 120 g/m3) |
| • class ÄÒê1 on smoke-forming ability by smouldering of non-metallic elements (coefficient of smoke formation from 50 to 500 m2/kg) |
| • class ÄÏê2 on smoke-forming ability by combustion (minimum luminous flux more than 60 %) |
| • corrosive class Êê1 of combustion products of non-metallic elements (the number of halogen hydrides less than 150 mg/g, pH less than 4.3, specific conductivity more than 10 µS/mm) |
