ÏÂÂÏíãä 2 x 2.5
ÒÓ Ó 31.3-00214534-059:2008

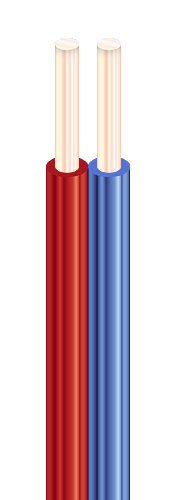

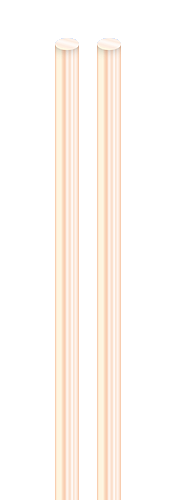

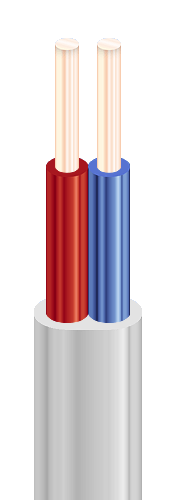

Connecting flat wires with copper conductors, low fire-risk PVC compound insulation, low fire-risk PVC compound outer sheath
Used for:
• laying in dry and damp areas, for installation in switchboards, in ducts,for concealed and open wiring on the walls, in the networks for AC voltage up to 380 V (for systems up to 380/660 V)
Fire safety code in accordance with ÄÑÒÓ 4809:2007: ÏÁ123121000
Products of this mark meet the requirements:
• single wire cable flame retardance
• bunched cable flame retardance category A
• toxicity class Tk3 of the combustion products of nonmetallic elements (toxicity index over 120 g/m3)
• class ÄÒê1 on smoke-forming ability by smouldering of non-metallic elements (coefficient of smoke formation from 50 to 500 m2/kg)
• class ÄÏê2 on smoke-forming ability by combustion (minimum luminous flux more than 60 %)
• corrosive class Êê1 of combustion products of non-metallic elements (the number of halogen hydrides less than 150 mg/g, pH less than 4.3, specific conductivity more than 10 µS/mm)
