АВВГнг 3x240 (ож)-6 • ТУ У 31.3-00214534-018-2003 • Power cables with aluminium conductors, with PVC-compound insulation, with low-flammable PVC-compound outer sheath

1

2

3

4

5

6

7

8

Dimentions in mm

АВВГнг 3x240 (ож)-6 ТУ У 31.3-00214534-018-2003
Power cables with aluminium conductors, with PVC-compound insulation, with low-flammable PVC-compound outer sheath

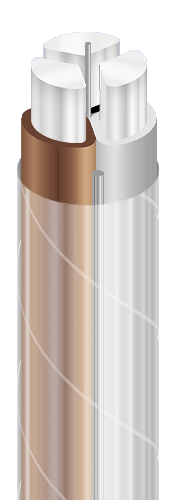

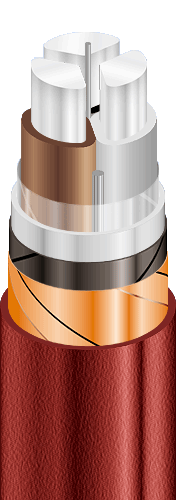

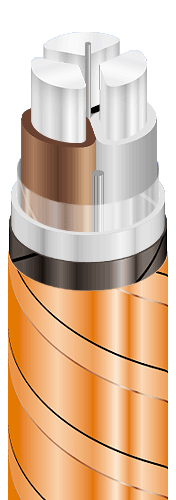

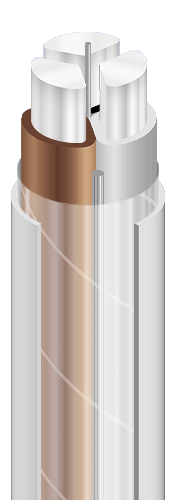

* CONSTRUCTION:
1	Aluminium conductor
2	PVC compound insulation
3	PVC compound bundle
4	PET film winding
5	PVC compound belt insulation
6	Lapping layer of semiconductive paper
7	Copper screen
8	Low flammable PVC compound outer sheath
Note:
* Conductor twisting is not illustrated
