АСП2л 3x185-10
ТУ У 27.3-00214534-091:2017 |
| Power cables with aluminium conductors, with impregnated paper insulation, lead-sheathed, steel-wire armoured |

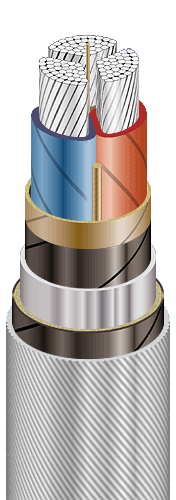

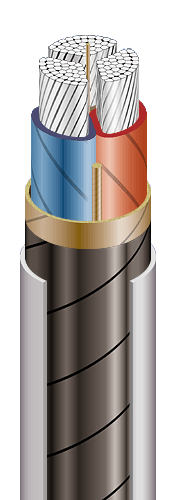

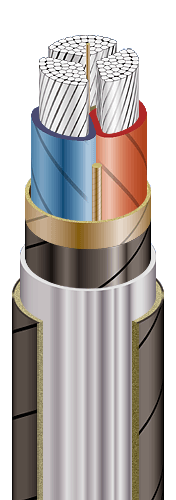

| * CONSTRUCTION: |

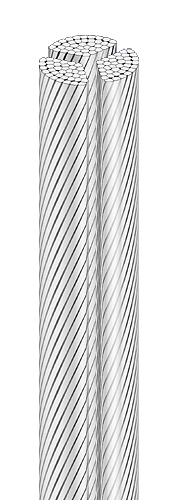

| 1 | Aluminium multiwire compacted conductor |

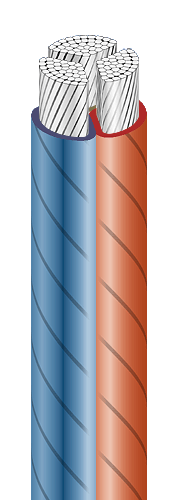

| 2 | Impregnated paper insulation |
| 3 | Cable paper bundle |
| 4 | Belt insulation |
| 5 | Conducting paper screen |
| 6 | Lead sheath |
| 7 | Double-layer plastic-tape bedding |
| 8 | Round galvanized steel-wire armour |
| 9 | Outer covering |
Note: |
* Conductor twisting is not illustrated |
