ЦААПлГ 3x70-10 • ТУ У 27.3-00214534-091:2017 • Power cables with aluminium conductors,with non-draining impregnated paper insulation, aluminium-sheathed, steel-wire armoured

1

2

3

4

5

6

7

8

Dimentions in mm

ЦААПлГ 3x70-10 ТУ У 27.3-00214534-091:2017
Power cables with aluminium conductors,with non-draining impregnated paper insulation, aluminium-sheathed, steel-wire armoured
* CONSTRUCTION:

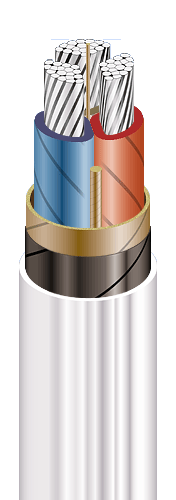

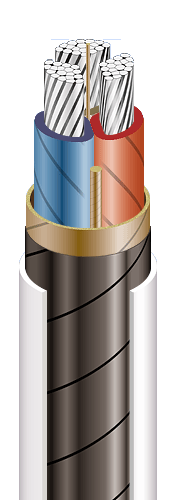

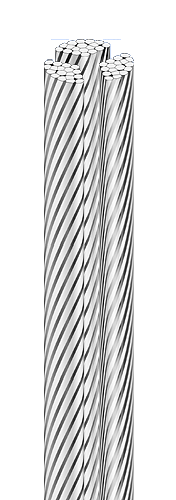

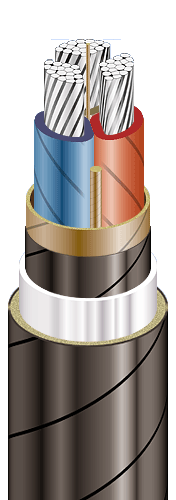

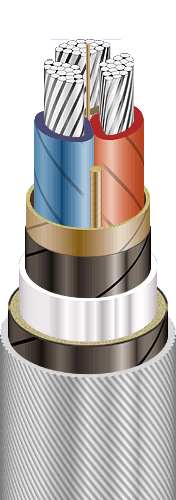

1	Aluminium multiwire compacted conductor
2	Impregnated paper insulation
3	Cable paper bundle
4	Belt insulation
5	Conducting paper screen
6	Aluminium sheath
7	Single-layer plastic-tape bedding
8	Round galvanized steel-wire armour
Note:
* Conductor twisting is not illustrated
