АПвЭгаПнг-HF-150 1x1600 ТУ У 31.3-00214534-060:2011 |
Power cables with aluminium conductor, flame-retardant and halogen-free, with XLPE, longitudinal and transverse screen sealing and polymer compound outer sheath |

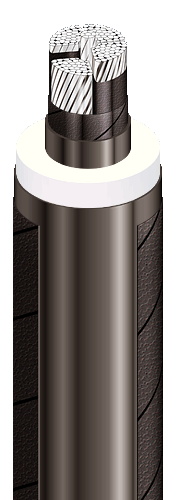

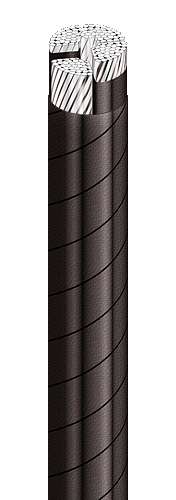

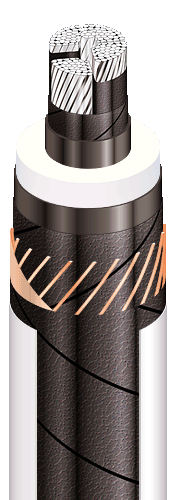

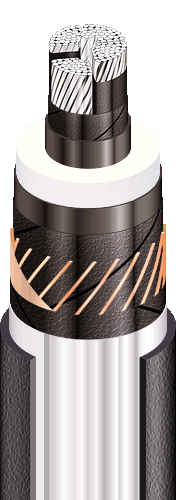

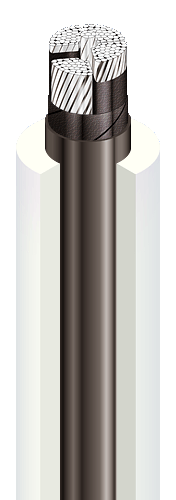

CONSTRUCTION: |
1 | 1 Aluminium multiwire compacted conductor |
2 | Lapping layer of semiconductive swellable tape |
3 | Inner extruded semiconducting layer |
4 | XLPE insulation |
5 | Outer extruded semiconducting layer |
6 | Lapping layer of semiconductive swellable tape |
7 | 2 Copper screen |
8 | Lapping layer of semiconductive swellable tape |
9 | Alumopolymer tape |
10 | 3 Polymer compound outer sheath:flame-retardant and halogen-free |
Notes: |
1a It is possible to manufacture cable with sealed conductor.1b Conductor segment twisting is not illustrated2 It is possible to manufacture a cable with a fiber optic module built into the screen, including as a DTS system sensor3 It is possible to manufacture cable with extruded semiconductor layer along outer sheath |
