ÏâÝÂíãä(ê)-10 3x120
ÒÓ Ó 31.3-00214534-017-2003

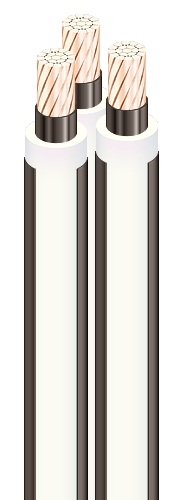

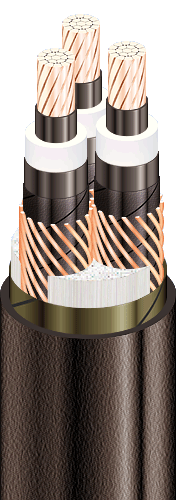

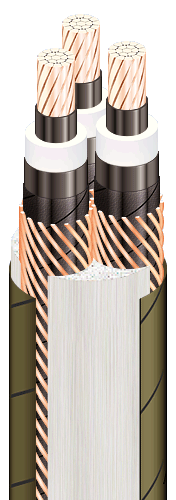

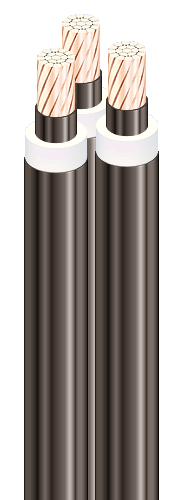

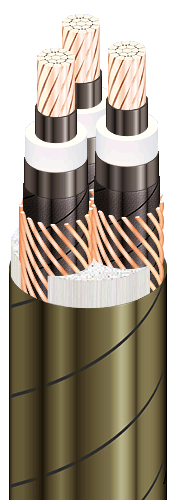

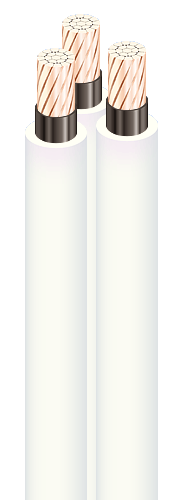

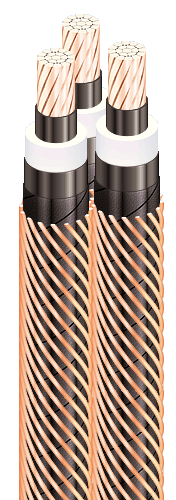

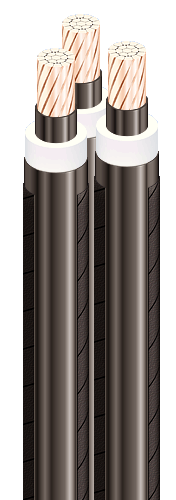

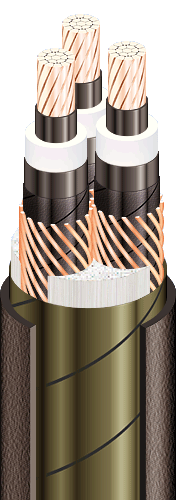

Three core power cables with copper conductors, XLPE-insulated, core-filled with bundles, with outer sheath of PVC compound, flame retardant, with low smoke and gas emission
Technical cable requirements correspond to IEC 60502-2
Cables are used for laying:
• in premises, tunnels, ducts, mines, dry soil and outdoor under shelter
• in bunches
• at sites, where low smoke and gas emission are required (NPP, subway, large industrial facilities, high-rise buildings, etc.)
It is possible to manufacture cables with an integrated fiber-optic module.
Order entry example:
ÏâÝÂíãä(ê)-10 3x120/16 (ÎÌ) ÒÓ Ó 31.3-00214534-017-2003
In conjunction with the DTS system, the integrated fiber-optic module can act as a distributed cable line temperature sensor. To learn more.
It is possible to manufacture cable with sealed conductors.
Order entry example:
ÏâÝÂíãä(ê)-10 3x120/16 (ã) ÒÓ Ó 31.3-00214534-017-2003
Fire safety code in accordance with ÄÑÒÓ 4809:2007: ÏÁ132121000
Products of this mark meet the requirements:
• single wire cable flame retardance
• bunched cable flame retardance category B
• toxicity class Tk2 of the combustion products of nonmetallic elements (toxicity index from 40 up to 120 g/m3)
• class ÄÒê1 on smoke-forming ability by smouldering of non-metallic elements (coefficient of smoke formation from 50 to 500 m2/kg)
• class ÄÏê2 on smoke-forming ability by combustion (minimum luminous flux more than 60 %)
• corrosive class Êê1 of combustion products of non-metallic elements (the number of halogen hydrides less than 150 mg/g, pH less than 4.3, specific conductivity more than 10 µS/mm)
