ПвЭоВнгд(к)-10 3x240
ТУ У 31.3-00214534-017-2003 |
| Three-core power cables with copper conductors, flame-retardant, with XLPE, collective screen and PVC compound outer sheath and with low smoke and gas emission |

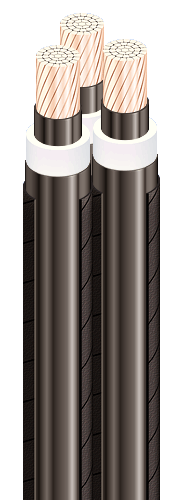

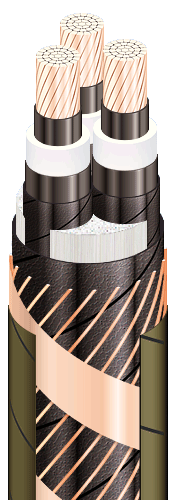

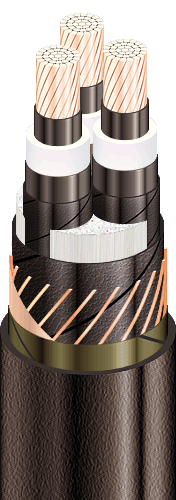

| * CONSTRUCTION: |

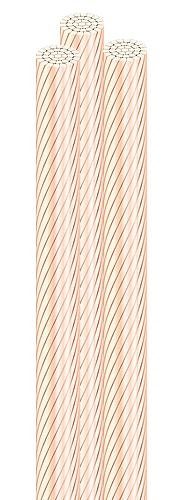

| 1 | Copper multiwire compact conductor |

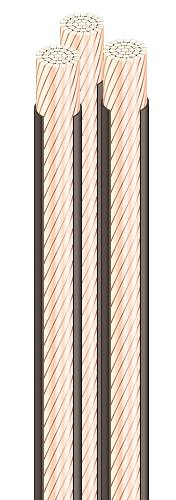

| 2 | Inner extruded semiconducting layer |

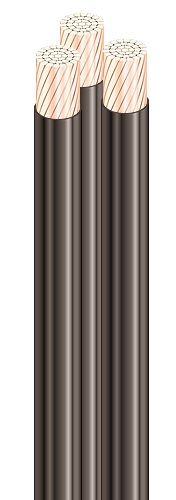

| 3 | XLPE insulation |

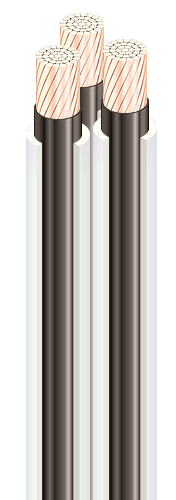

| 4 | Outer extruded semiconducting layer |
| 5 | Lapping layer of semiconductive swellable tape |
| 6 | Interstitial filler with polypropylene bundles |
| 7 | Lapping layer of semiconductive swellable tape |
| 8 | Copper screen |
| 9 | Lapping layer of glass tape |
| 10 | Low fire-risk PVC compound outer sheath |
Note: |
* Conductor twisting is not illustrated |
