ПвЭгПу-10 1x1000 ТУ У 31.3-00214534-017-2003
Power cables with copper conductors, with XLPE, longitudinal screen sealing and strengthened polyethylene outer sheath

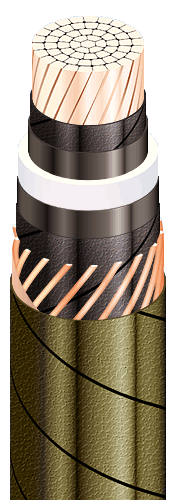

CONSTRUCTION:
1	1 Copper multiwire compact conductor
2	Lapping layer of semiconductive swellable tape
3	Inner extruded semiconducting layer
4	XLPE insulation
5	Outer extruded semiconducting layer
6	Lapping layer of semiconductive swellable tape
7	Copper screen
8	Lapping layer of nonwoven cloth tape
9	2 Strengthened polyethylene outer sheath
Notes:

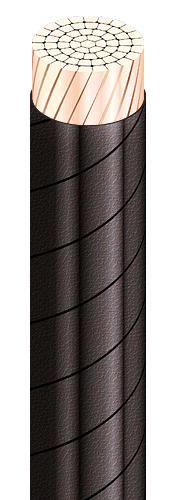

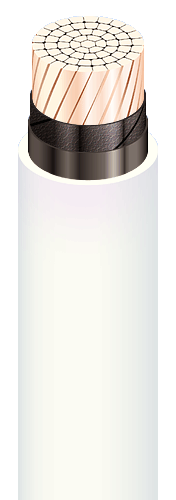

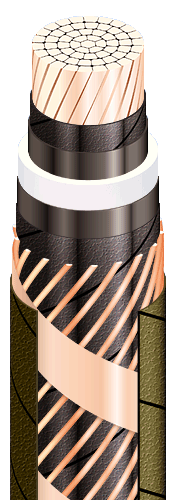

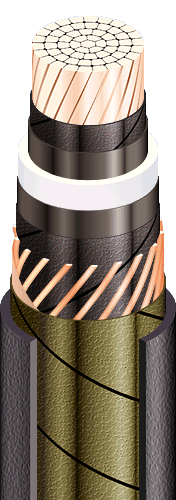

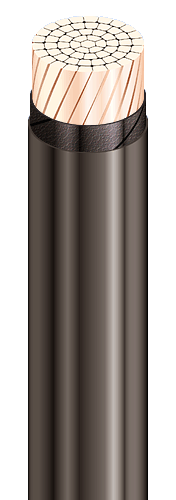

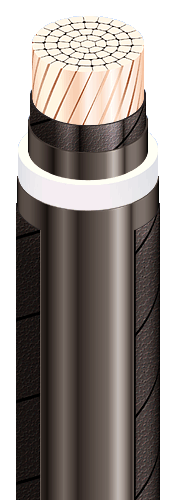

1a It is possible to manufacture cable with a segmented conductor 1b It is possible to manufacture cable with sealed conductor. 2 It is possible to manufacture cable with extruded semiconductor layer along outer sheath
