АПвЭСПу-20 1x1000 ТУ У 27.3-00214534-092:2016 |
Single-core power cables with aluminium conductors, XLPE-insulated, with copper screen, lead-sheathed, with reinforced outer sheath of polyethylene |

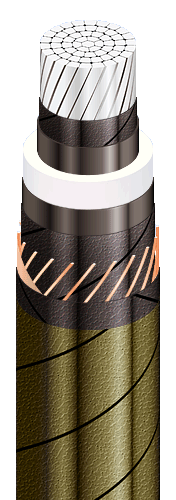

CONSTRUCTION: |

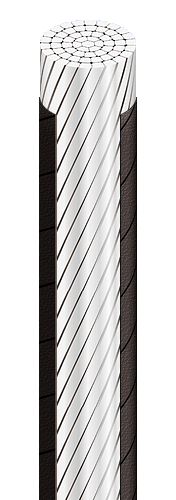

1 | 1 Aluminium multiwire compacted conductor |
2 | Lapping layer of semiconductive swellable tape |

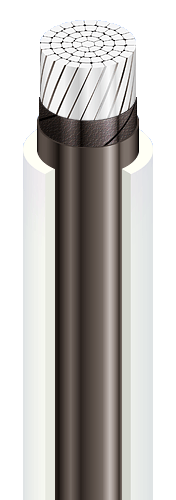

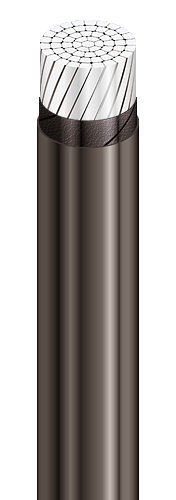

3 | Inner extruded semiconducting layer |

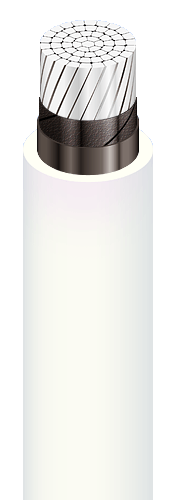

4 | XLPE insulation |
5 | Outer extruded semiconducting layer |

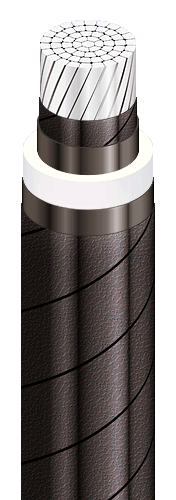

6 | Lapping layer of semiconductive swellable tape |

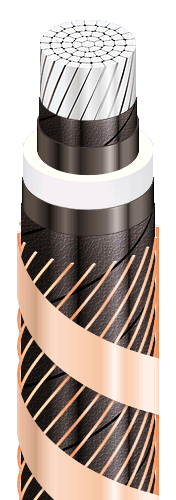

7 | 2 Copper screen |
8 | Lapping layer of semiconductive swellable tape |
9 | Lapping layer of semiconductive tape |

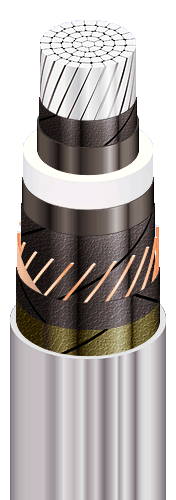

10 | Lead sheath |

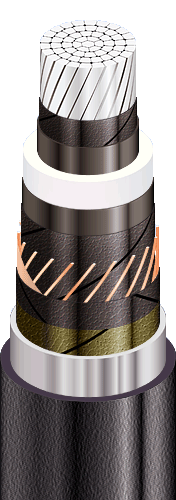

11 | 3 Strengthened polyethylene outer sheath |
Notes: |
1a It is possible to manufacture cable with a segmented conductor1b It is possible to manufacture cable with sealed conductor.2 Cables without copper screen can also be manufactured3 It is possible to manufacture cable with extruded semiconductor layer along outer sheath |
