АПвЭБПнг-30 3x240 • ТУ У 31.3-00214534-058:2007 • Three-core power cables with aluminium conductors, flame-retardant, with XLPE, steel-tape armoured, with polymer compound outer sheath

1

2

3

4

5

6

7

8

9

Dimentions in mm

АПвЭБПнг-30 3x240 ТУ У 31.3-00214534-058:2007
Three-core power cables with aluminium conductors, flame-retardant, with XLPE, steel-tape armoured, with polymer compound outer sheath
* CONSTRUCTION:

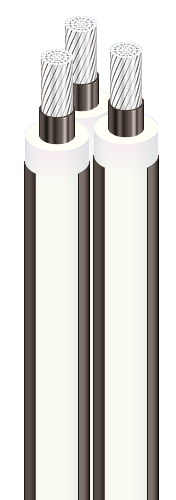

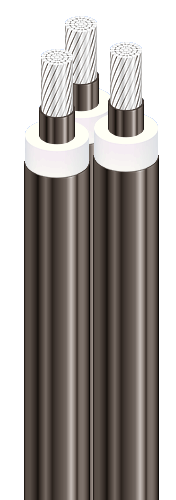

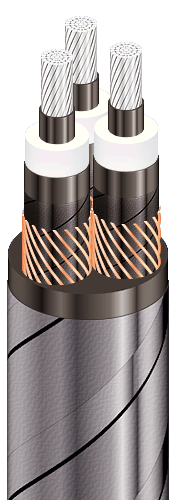

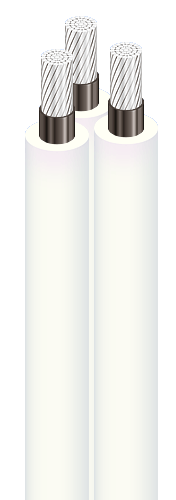

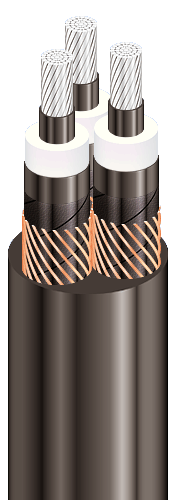

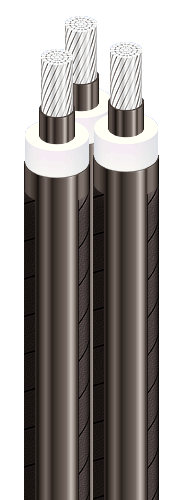

1	1 Aluminium multiwire compacted conductor
2	Inner extruded semiconducting layer
3	XLPE insulation
4	Outer extruded semiconducting layer
5	Lapping layer of semiconductive swellable tape
6	2 Copper screen
7	Extruded filling of PVC compound
8	Double galvanized steel-tape armour
9	3 Flame-retardant polymer compound outer sheath
Notes:
* Conductor twisting is not illustrated 1a It is possible to manufacture cable with a single-wire conductor 1b It is possible to manufacture cable with sealed conductors. 2 It is possible to manufacture a cable with a fiber optic module built into the screen, including as a DTS system sensor 3 It is possible to manufacture cable with extruded semiconductor layer along outer sheath
