АПвЭБВ-15 3x120 • ТУ У 31.3-00214534-017-2003 • Three-core power cables with aluminium conductors, with XLPE, steel-tape armoured, with PVC compound outer sheath

1

2

3

4

5

6

7

8

9

Dimentions in mm

АПвЭБВ-15 3x120 ТУ У 31.3-00214534-017-2003
Three-core power cables with aluminium conductors, with XLPE, steel-tape armoured, with PVC compound outer sheath

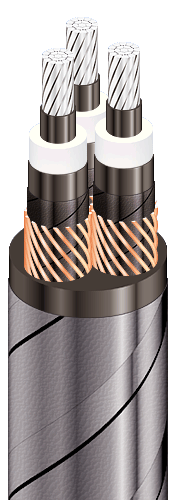

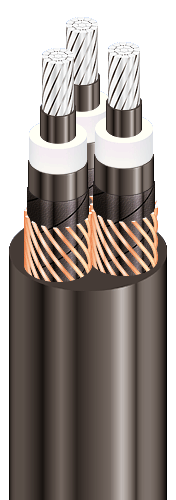

* CONSTRUCTION:

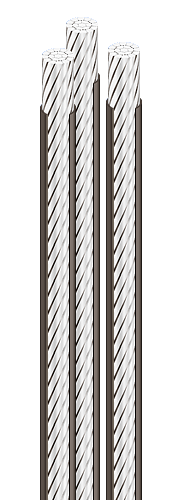

1	1 Aluminium multiwire compacted conductor

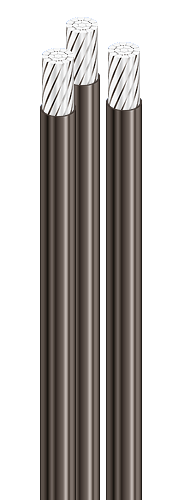

2	Inner extruded semiconducting layer

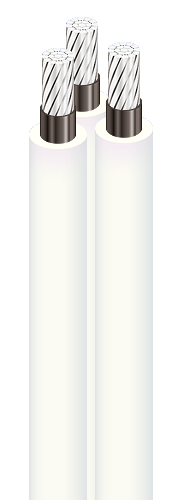

3	XLPE insulation

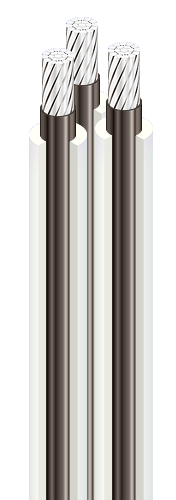

4	Outer extruded semiconducting layer

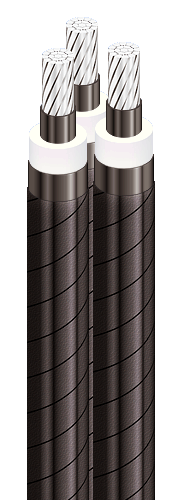

5	Lapping layer of semiconductive swellable tape
6	Copper screen
7	Extruded filling of PVC compound
8	Double galvanized steel-tape armour
9	PVC compound outer sheath
Notes:
* Conductor twisting is not illustrated 1a It is possible to manufacture cable with a single-wire conductor 1b It is possible to manufacture cable with sealed conductors.
