АПвЭоПнг(к)-30 3x120 • ТУ У 31.3-00214534-058:2007 • Three-core power cables with aluminium conductors, flame-retardant, with XLPE, collective screen and polymer compound outer sheath

1

2

3

4

5

6

7

8

9

10

Dimentions in mm

АПвЭоПнг(к)-30 3x120 ТУ У 31.3-00214534-058:2007
Three-core power cables with aluminium conductors, flame-retardant, with XLPE, collective screen and polymer compound outer sheath
* CONSTRUCTION:

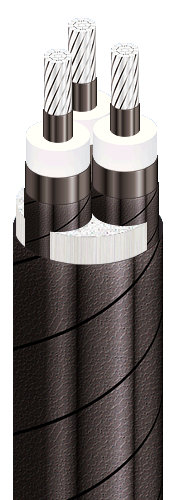

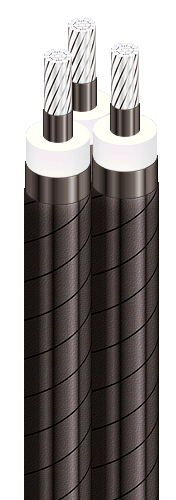

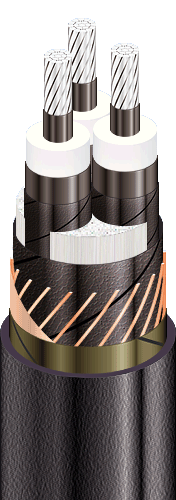

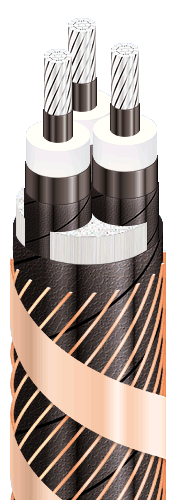

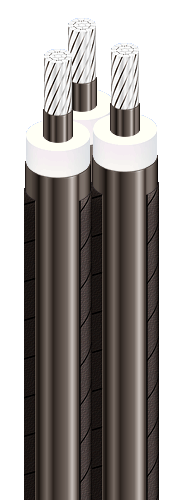

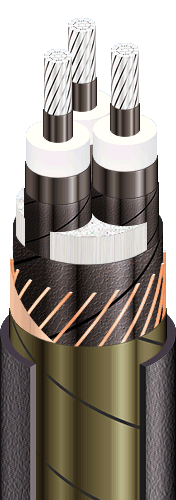

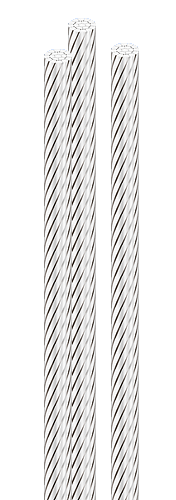

1	1 Aluminium multiwire compacted conductor
2	Inner extruded semiconducting layer

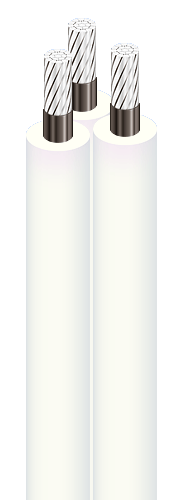

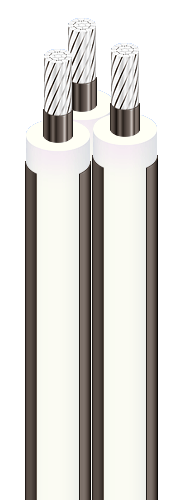

3	XLPE insulation
4	Outer extruded semiconducting layer
5	Lapping layer of semiconductive swellable tape
6	Interstitial filler with polypropylene bundles
7	Lapping layer of semiconductive swellable tape
8	Copper screen
9	Lapping layer of glass tape
10	2 Flame-retardant polymer compound outer sheath
Notes:
* Conductor twisting is not illustrated 1a It is possible to manufacture cable with a single-wire conductor 1b It is possible to manufacture cable with sealed conductors. 2 It is possible to manufacture cable with extruded semiconductor layer along outer sheath
