ÀÏâÝãàÏ-6 1x70
ÒÓ Ó 31.3-00214534-017-2003 |
| Power cables with aluminium conductors, with XLPE, longitudinal and transverse screen sealing and polyethylene outer sheath |
| For the cable of this mark correspond the foreign-made analogues: |
| NA2XS(FL)2Y (DE) • A2XS(FL)2Y (DE) • Al/XLPE/CWS/LW/MDPE (GB) • XRUHAKXS (PL) • ÀÏâÏ2ã (RU) |
| Technical cable requirements correspond to IEC 60502-2 |
|
|
|
| Cables are used for laying: |
| • in soil (trenches) |
| • in damp, partially flooded premises |
| • in ground with high humidity |
| • in non-navigable waters |
| • in the air, including cable structures, if provided the additional fire protection |
|
|
|
It is possible to manufacture cables with extruded semiconductor layer along outer sheath.
Order entry example: |
| ÀÏâÝãàÏ-Ï–6 1x70/16 ÒÓ Ó 31.3-00214534-017-2003 |
| An extruded semiconductor layer along outer sheath ensures the correct testing of cable line with sections of underground laying in polymer pipes. To learn more. |
|
|
|

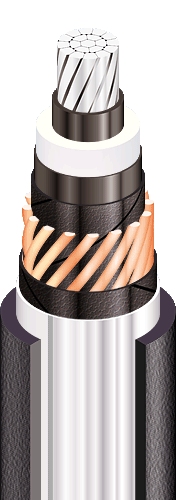

It is possible to manufacture cables with an integrated fiber-optic module.
Order entry example: |
| ÀÏâÝãàÏ-6 1x70/16 (ÎÌ) ÒÓ Ó 31.3-00214534-017-2003 |
| In conjunction with the DTS system, the integrated fiber-optic module can act as a distributed cable line temperature sensor. To learn more. |
|
|
|
It is possible to manufacture cable with single-wire conductor.
Order entry example: |
| ÀÏâÝãàÏ-6 1x70/16 (îæê) ÒÓ Ó 31.3-00214534-017-2003 |
|
|
|
It is possible to manufacture cable with sealed conductor.
Order entry example: |
| ÀÏâÝãàÏ-6 1x70/16 (ã) ÒÓ Ó 31.3-00214534-017-2003 |
|
|
|
It is possible to supply of three stranded single-core cables.
Order entry example: |
| 3xÀÏâÝãàÏ-6 1x70/16 ÒÓ Ó 31.3-00214534-017-2003 |
|
|
|
