АПвЭВнг-15 1x95 • ТУ У 31.3-00214534-017-2003 • Power cables with aluminium conductors, flame-retardant, with XLPE and PVC compound outer sheath

1

2

3

4

5

6

7

8

Dimentions in mm

АПвЭВнг-15 1x95 ТУ У 31.3-00214534-017-2003
Power cables with aluminium conductors, flame-retardant, with XLPE and PVC compound outer sheath

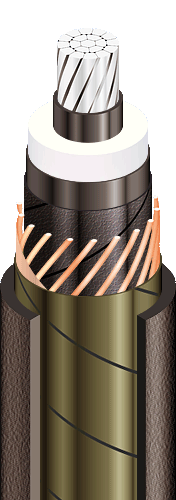

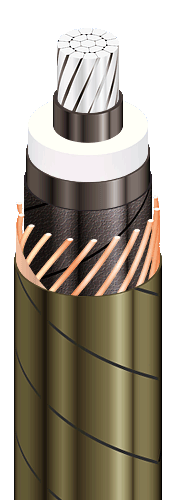

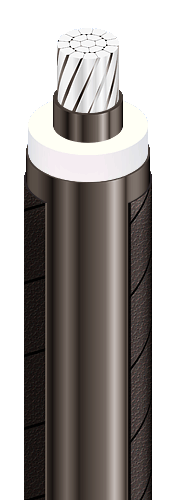

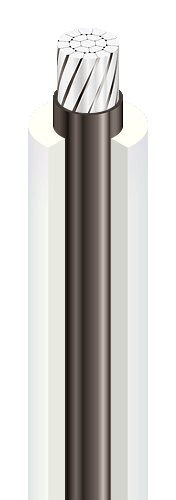

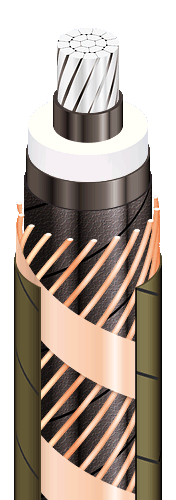

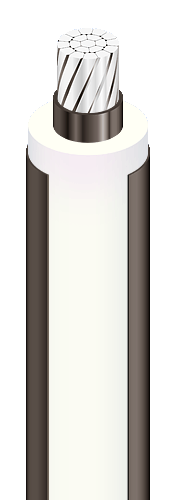

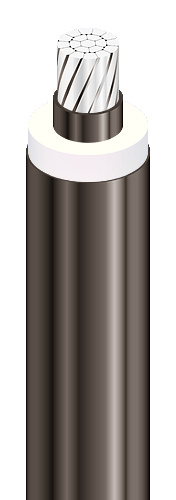

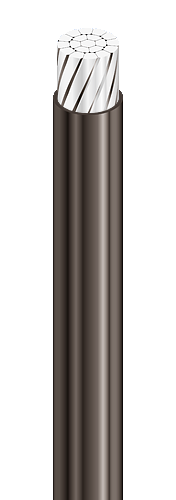

CONSTRUCTION:
1	1 Aluminium multiwire compacted conductor
2	Inner extruded semiconducting layer
3	XLPE insulation
4	Outer extruded semiconducting layer
5	Lapping layer of semiconductive swellable tape
6	Copper screen
7	Lapping layer of glass tape
8	Low flammable PVC compound outer sheath
Notes:
1a It is possible to manufacture cable with a single-wire conductor 1b It is possible to manufacture cable with sealed conductor.
