АПвЭВнг-6 1x1600 • ТУ У 31.3-00214534-017-2003 • Power cables with aluminium conductors, flame-retardant, with XLPE and PVC compound outer sheath

1

2

3

4

5

6

7

8

9

Dimentions in mm

АПвЭВнг-6 1x1600 ТУ У 31.3-00214534-017-2003
Power cables with aluminium conductors, flame-retardant, with XLPE and PVC compound outer sheath
CONSTRUCTION:

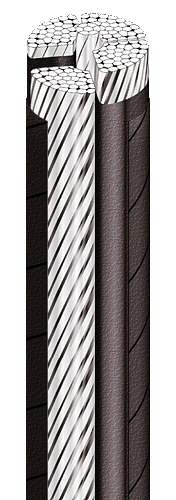

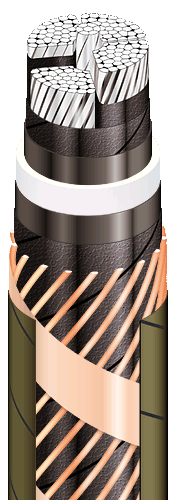

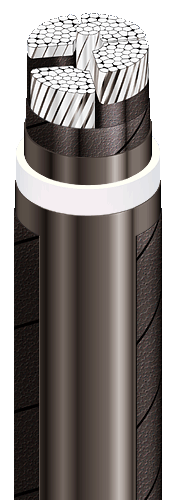

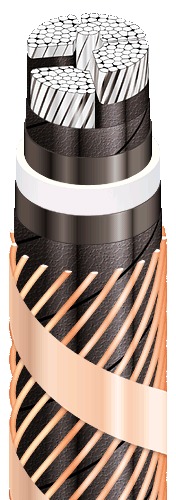

1	1 Aluminium multiwire compacted conductor
2	Lapping layer of semiconductive swellable tape
3	Inner extruded semiconducting layer
4	XLPE insulation
5	Outer extruded semiconducting layer
6	Lapping layer of semiconductive swellable tape
7	Copper screen
8	Lapping layer of glass tape
9	Low flammable PVC compound outer sheath
Notes:
1a It is possible to manufacture cable with sealed conductor. 1b Conductor segment twisting is not illustrated
